What Chronograph Sub-Dials Actually Do (And When You Need Them)
A chronograph is a watch with a stopwatch built into the movement. That is the whole idea. Everything else, the sub-dials, the pushers, the tachymeter scale, exists to make that stopwatch readable and useful.
Which is why it is worth knowing what you are looking at. The three hands inside the dial are not decorative, and the two buttons on the side of the case are not the same as the crown. Once you understand the layout, choosing a chronograph becomes a question of which functions you will actually use rather than which dial looks busiest.
The basic controls
A chronograph has three controls. The crown sets the time. The upper pusher, usually at two o'clock, starts and stops the chronograph. The lower pusher, at four o'clock, resets it to zero.
The sequence matters: start, stop, reset, in that order. Pressing reset while the chronograph is running will either do nothing on a mechanical movement or, on some older movements, damage the mechanism. This is the single most common way people break a chronograph.
The three layouts you will actually encounter
| Layout | Registers | What it is good for |
|---|---|---|
| Three-register (12-6-9) | Running seconds, 30 or 60-minute counter, 24-hour indicator | Everyday use; the most common quartz layout |
| Two-register (3-9) | Running seconds and a 30-minute counter | Cleaner dial, less visual clutter, still a working stopwatch |
| Central minutes (rare) | One central hand plus a small seconds | Reading elapsed time at a glance |
On most quartz chronographs the large centre seconds hand is the chronograph seconds, not the running seconds. When the chronograph is stopped, that hand sits at twelve and appears dead. The watch is not broken; the small sub-dial at six or nine o'clock is doing the actual ticking. This single misunderstanding accounts for a lot of unnecessary returns.
Reading the tachymeter
The numbered scale around the edge of many chronograph dials is a tachymeter. It converts elapsed time into speed, using a fixed relationship: speed equals distance divided by time, scaled to one hour.
To use it, start the chronograph when you pass a known distance marker, stop it when you pass the next, and read the number the centre seconds hand points to. If the distance is one kilometre and the hand points to 120, your average speed was 120 km/h. If the distance is one mile, the number is in miles per hour.
That is the whole function. It is genuinely useful for one narrow purpose, and purely decorative for everything else. A tachymeter does not measure distance, heart rate or anything else, despite what the numbers suggest.
Quartz versus mechanical chronographs
Almost all chronographs under £300 use a quartz movement with a chronograph module. These are accurate, need a battery every two to three years, and are inexpensive to own. The trade-off is that the pushers feel light and the centre seconds hand usually ticks once per second rather than sweeping.
A mechanical chronograph uses a column wheel or cam system to engage the chronograph, which gives a crisper pusher action and a sweeping seconds hand. It also costs considerably more and needs a service every five to seven years that typically costs more than a quartz watch. If you want to understand the underlying difference, our guide to automatic versus quartz movements covers it in detail.
For daily wear, quartz is the rational choice. Mechanical chronographs are bought for the mechanism as much as for the function, which is a perfectly good reason, but it is worth being honest about.
Four chronographs that use the layout well

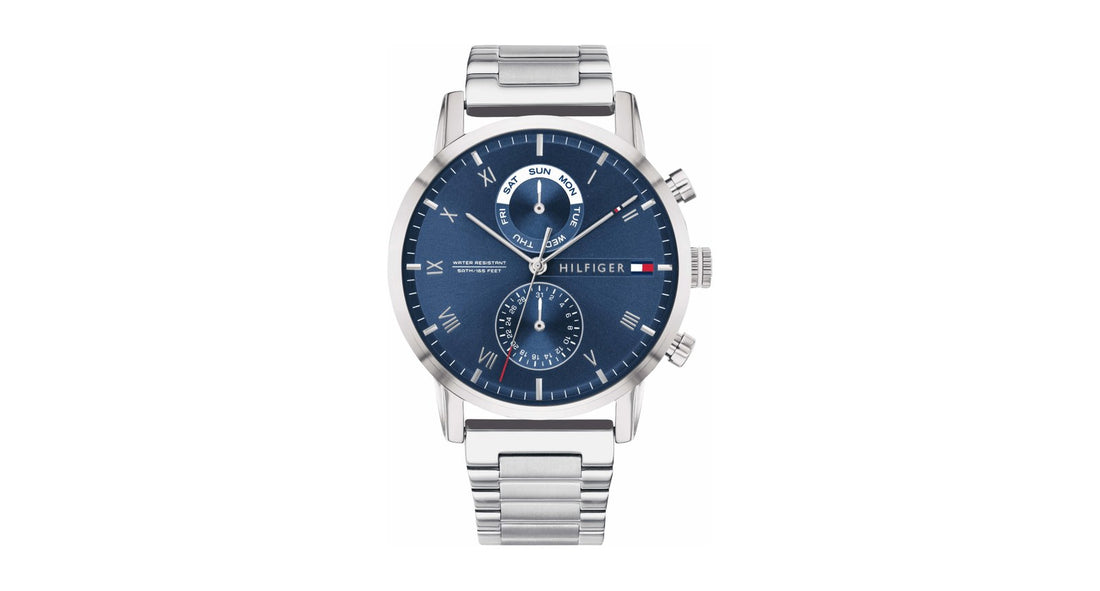

- Tommy Hilfiger 1710401, £129. 44mm, blue dial, steel bracelet, 5 ATM. A standard three-register layout with enough contrast to read the sub-dials at a glance.
- Maserati TraGuardo R8853112505, £179. 45mm, blue dial, steel bracelet, 10 ATM. The extra water resistance makes this the one to take travelling.
- Michael Kors MK3131 Runway, £159. 38mm, gold dial, steel bracelet, 5 ATM. Proof that a chronograph does not have to be large; the layout works at 38mm.
- Emporio Armani AR0431, £149. 47mm, black dial, leather strap, 5 ATM. A darker, quieter dial where the registers recede until you need them.
When a chronograph is the wrong purchase
Three situations where a three-hand watch is the better decision.
If you want a thin watch. A chronograph movement is thicker by design, and on a 44mm case that thickness is noticeable under a cuff.
If legibility matters more than features. A plain dial with applied indices is easier to read at a glance than three sub-dials, particularly in low light.
If you will never use the stopwatch. That is most people, and there is no shame in it, but a chronograph bought purely for its appearance is a styling decision and should be priced accordingly.
Common questions
Why does the big second hand never move?
On a quartz chronograph it is the chronograph seconds hand, not the running seconds. Press the top pusher and it will start. The watch is keeping time through a sub-dial.
Can I leave the chronograph running?
On a quartz movement, leaving it running drains the battery faster. On a mechanical chronograph it adds wear to the mechanism. Stop and reset it when you are finished.
Is a chronograph waterproof?
Water resistance is stated separately, usually as 3, 5 or 10 ATM. A chronograph is not automatically more water resistant, and the pushers should never be operated underwater unless the watch is specifically rated for it.
What does 1/10 second mean on the sub-dial?
Some quartz chronographs replace the 24-hour indicator with a tenth-of-a-second counter, which spins fast for the first thirty seconds of timing. It is impressive to watch and rarely useful.
